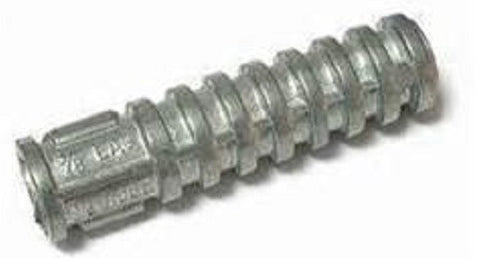

3/4" X 3-1/2" Long Lag Screw Shield Anchors | Box 25ProductVariantDrop
- Embedment: 3-1/2
- Hold Weight Concrete 4000 psi: 670 lbs
- TPI: 10; Drill Size: 1
- Materials: Concrete, masonry, mortar joint, and brick.

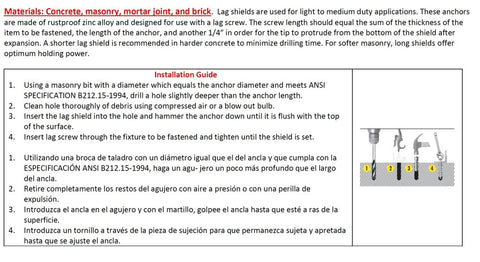

- Lag shields are used for light to medium duty applications. These anchors are made of rustproof zinc alloy and designed for use with a lag screw. The screw length should equal the sum of the thickness of the item to be fastened, the length of the anchor, and another 1/4” in order for the tip to protrude from the bottom of the shield after expansion. A shorter lag shield is recommended in harder concrete to minimize drilling time. For softer masonry, long shields offer optimum holding power.
