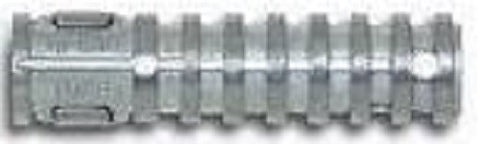

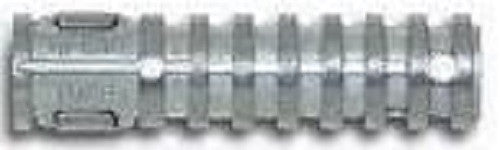

1/2" X 2" Short Lag Screw Shield Anchors | Bulk Box 500

ProductVariantDrop

  • $555.96


  • Embedment: 2
  • Hold Weight Concrete 4000 psi: 425 lbs
  • Hold Weight Block C-90: 200 Lbs
  • TPI: 13; Drill Size: 3/4
  • Materials: Concrete, masonry, mortar joint, and brick.

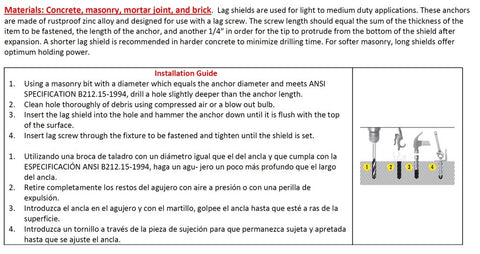

  • Lag shields are used for light to medium duty applications. These anchors are made of rustproof zinc alloy and designed for use with a lag screw. The screw length should equal the sum of the thickness of the item to be fastened, the length of the anchor, and another 1/4” in order for the tip to protrude from the bottom of the shield after expansion. A shorter lag shield is recommended in harder concrete to minimize drilling time. For softer masonry, long shields offer optimum holding power.
